Ark IP54 60KW DC Output Electric Car Charger with CCS CHAdeMO and
22kW AC Type-2 Outlets, support OCPP
Product Introduction
The eFlex DC fast charging station adopts modern design, which conforms to the aesthetics of European
and American customers.With big power, it is suitable for fast
charging applications in highway and oil stations. It supports the
OCPP1.6J protocol, which enables it to be connected and run with
the global EV charging management platform.
Product Parameters
| System |
| Housing material | Metal enclosure |
| Dimension (H x W x D) | 1900 x 700 x 700mm |
| Installation method | Ground mount |
| Cable routing | Bottom inlet, top outlet wiring |
| Weight | 355kgs |
| Charging standard | CCS combo-1/2, CHAdeMO & AC IEC 61851 |
| Charging outlet | CHAdeMO JEVS G105, CCS Combo-2, IEC 62196 Type-2 |
| Outlet number | 3 |
| Input |
| Input voltage | 400Vac +/-10%, 3-phase |
| Input frequency | 50Hz/60Hz |
| Power factor | 0.99 |
| Output |
| Rated output power | CCS: 60kW, CHAdeMO: 60kW, AC: 22kW | CCS: 120kW, CHAdeMO: 60kW, AC:22kW |
| Measuring accuracy | Level 0.5 |
| Output voltage range | 150 – 750V DC constant output @ above 300V, 400V AC |
| Output current range | 0 - 200A DC, 32A AC | 0 - 400A DC, 32A AC |
| Efficiency | > 94% at rated output |
| General |
| Charging type | Mode 4 |
| User Interface | RFID, 7” touch screen, Emergency button |
| Ethernet | 10/100 BaseTX (TCP-IP) |
| Cellular | LTE modem, GPRS/3G/4G |
| Communication | CAN, PLC, PWM, OCPP 1.6 JSON |
| Application place | Indoor/Outdoor |
| Working temperature | -20 °C – +70 °C |
| Working humidity | 5% – 95% non-condensation |
| Altitude | < 2000m |
| Protection grade | IP54 |
| Cooling | Fan cooling |
| Security design | Over/under voltage protection, overload protection, current leakage
protection, grounding protection, lightening surge protection |
Features

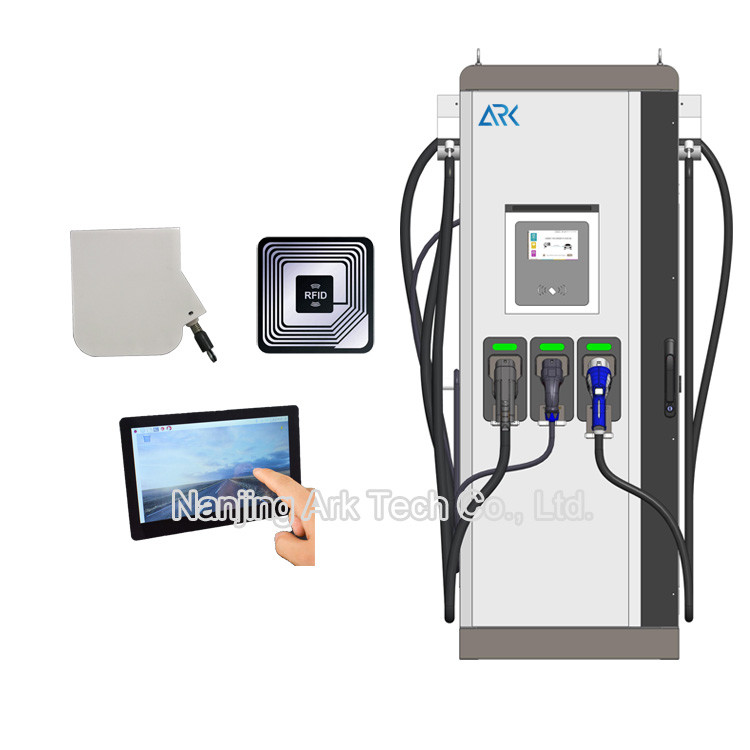

The 7-inch display and unique UI offer good user display
requirements for charging.
The lit LED beacons allow users to quickly identify the current
charging status.
Mobile app integration feature provides users the convenience of
remote operation and real-time charging status reminders.
Its metal casing and semi-gross coating ensure the appearance of
the texture and meet the long-term outdoor use.
Multiple Charging Mode. Totally four charging modes of automatic charging, reservation
charging, ration charging and SOC charging could be selected
according to actual situation. Start methods of plug and charge, by
IC card, by APP and by pressing start button could also be set
freely aims to meet different requests of various customers.
Company Details
At Ark Tech, we want to establish a one-stop turnkey EV AC&DC
Charger solutions that enable we are your first choice when it
comes to implement EV AC&DC charger projects. The Ark Tech team
has a great vision to provide you with stable and reliable DC
charging solutions and services. With extensive experience and
knowledge of electrical and digital power supply, we provide you
with the most professional and practical project implementation
guidance.
FAQ
Q: Do your charger support the OCPP function?
Yes, our charger support the OCPP 1.6, it can be connected to
Internet via Ethernet, 3G/4G.
Q: How about the quality and warranty about the charger?
All of our chargers are CE certificated. We supply 24 months warranty for the charger, what'more, we supply
whole life techinical support.
NOTE:
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger
KW, please contact us to get the correct quote.
