    CCS IP54 100A Public Charging Stations For Electric Vehicles

    Ask Lasest Price
    Brand Name : ARK or OEM
    Model Number : EF040CJ030
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200 units per month
    Delivery Time : 20-45 days
    • Product Details
    • Company Profile

    CCS IP54 100A Public Charging Stations For Electric Vehicles

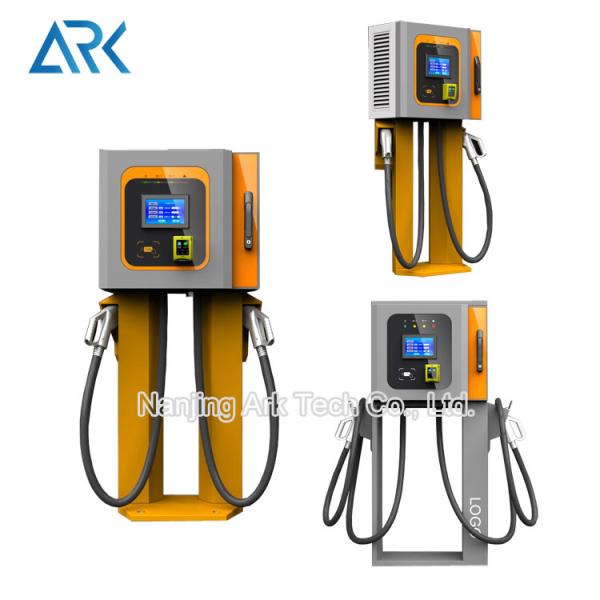

    Ark 30kw Dual Connectors Electric Charging Station DC Fast Charger Machine

    Product Introduction
    eFlex 30kW DC charger is the top choice for charging electric vehicles today. It is designed for quick charging in both commercial and private locations.
    Embedded with RFID, Ethernet and LTE functions, it is most suitable for charging applications in shopping malls and companies. It complies with the OCPP1.6J protocol, allowing it to be connected and operated with the global EV charging management platform.


    Product Parameters
    Technical specificationsEF040CJ030
    System
    Housing materialMetal enclosure
    Dimension (H x W x D)600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)
    Installation methodWall mount, pedestal mount (optional)
    Cable routingBottom inlet, bottom outlet wiring
    WeightN.W.: 95kgs, 120kgs (pedestal mount)
    Charging standardIEC 61851, CHAdeMO
    Charging outletCHAdeMO JEVS G105, CCS Combo-2
    Outlet number2
    Input
    Input voltage400Vac +/-10%, 3-phase
    Input frequency50Hz/60Hz
    Power factor0.99
    Output
    Rated output powerCCS: 30kW, CHAdeMO: 30kW
    Measuring accuracyLevel 0.5
    Output voltage rangeCCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V
    Output current range0 - 100A
    Efficiency> 94% at rated output
    General
    Charging typeMode 4
    User InterfaceRFID, 7” touch screen, Emergency button
    Ethernet10/100 BaseTX (TCP-IP)
    CellularLTE modem, GPRS/3G/4G
    Communication
    CAN, PLC, OCPP 1.6 JSON
    Application placeIndoor/Outdoor
    Working temperature-30 °C – +55 °C
    Working humidity5% – 95% non-condensation
    Altitude< 2000m
    Protection gradeIP54
    CoolingFan cooling
    ComplianceEN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014

    CCS IP54 100A Public Charging Stations For Electric VehiclesCCS IP54 100A Public Charging Stations For Electric Vehicles



    Features


    The 7-inch display and unique UI offer good user display requirements for charging.
    The lit LED beacons allow users to quickly identify the current charging status.
    Mobile app integration feature provides users the convenience of remote operation and real-time charging status reminders.


    Application
    Retail and mall parking spaces
    Fleet charging stations
    Highway service areas
    Workplaces
    Residences, etc.


    Company Introduction

    At ARK Tech limited we deliver the most safest, innovative and smartest electric vehicle components, including all kinds of EV charging stations on the market.All of our products are with CE approval. The industry pioneers at ARK Tech build real world EV charging expertise into every product we deliver. And our products sell quite well mainly in Europe and USA.We would like to show our honesty, top good quality, competitive prices and superior efficiency to start business with all of you. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction. "THANK YOU" to all of our long-time customers and "WELCOME" to our new customers. For more, please contact us freely.


    FAQ:


    Q1:Are you Trading Company or manufacturer?

    A: We are professional design and manufacturer.


    Q2:What are your main market?

    A:Mostly Europe and America, then Asia.


    Q3:How long time to make a sample?

    A:3-7 days if we make a new sample for you.

    If you just select our existing sample, we can send you sample the next day.


    Q4:How long is the lead time:

    A: The lead time is 7-30 days, it depends on the quantity and production scheduling.


    Q5: How many kinds of payment?

    A: We have T/T and L/C etc.

    If you need the detailed terms of payment, pls contact us.


    Q6: Why is new model expensive than other old models?

    A: A new model needs large R&D and mould cost, and the depletion rate is bigger during mould and production. Besides, new model is low productive but labor costs keep same as old model.


    Q7: What certifications do you have?

    A: We have approved Chinese national standard, European IEC standard, American SAE standard and Japanese CHAdeMo standard etc certification.


    Q8: How long is the warranty time?

    A: The warranty time is 2 years.


    Our Service:


    1. We will reply you for your inquiry in 24 hours.

    2. T/T and L/C etc payment terms all accepted.

    3. Shipment:By air, By sea, By International express (DHL,Fedex).

    4. Warranty Period: Within 24 months after shipment.

    5. Provide operating guide (instruction).

    6. Customized design,sample and packing according to clients requirements.
