32A AC Car Charger

Ask Lasest Price
Brand Name :	ARK or OEM
Model Number :	AKEV22
Certification :	CE
Price :	negotiable
Payment Terms :	T/T, L/C
Supply Ability :	1000 units per month
Delivery Time :	25-45days

Add to Cart

Product Details
Company Profile

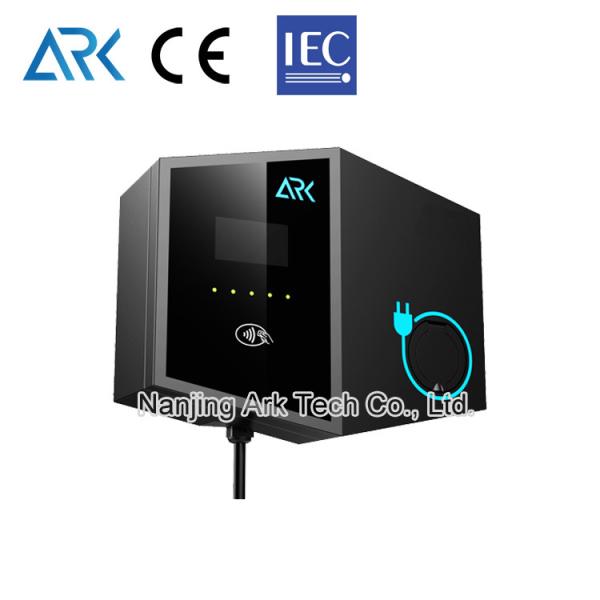

32A AC Car Charger

Ark EV Charging Station with22kW 32A AC Output and Type 2 connectors for Electric Car Charging

Product Introduction

Ark AC EV Charger Station with 22kW Type - 2 Connector and OCPP 1.6 function comes up with modern design for commercial and public charging. Embedded with RFID, Ethernet and LTE features makes it best suitable for mall and company charging applications. Compliant with OCPP1.6J protocol enables it to be connected and operated with global EV charging management platform.

Product Parameters

Technical specifications	AKEV22
System
Housing material	Metal enclosure
Dimension (H x W x D)	300450160mm, 1200450160mm (pedestal mount)
Installation method	Wall mount, pedestal mount (optional)
Cable routing	Bottom inlet wiring
Weight	N.W.: 11kg
Charging standard	IEC 61851-22
Charging outlet	Type-2 socket or connector
Outlet number	1
Input
Input voltage	230Vac +/-10% 1-phase	400Vac +/-10%, 3-phase
Input frequency	50Hz/60Hz
Output
Max output power	7kW	22kW
Measuring accuracy	Level 0.5
Output voltage range	230Vac +/-10% 1-phase	400Vac +/-10%, 3-phase
Output current range	32A
RCCB	Type-B, sensitivity: 30mA
General
Charging type	Mode 3
User Interface	RFID, LCD Display
AC connector type	IEC 62196 Type-2
Communication	PWM, Ethernet, LTE, OCPP 1.6J
Application place	Indoor/Outdoor
Working temperature	-30 °C – +50 °C
Working humidity	5% – 95% non-condensation
Altitude	<2000m
Protection grade	IP55
Cooling	Natural cooling
Safety standard	Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001
Security design	Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection

32A AC Car Charger

Features

The 4.3 inch display and unique UI.

The LED status display.

OCPP1.6 integrated.

Ethernet and LTE network

Wall mount and pedestal mount optional

Socket and cable outlet optional

OEM and branding service

Application

Shopping mall

Company charging

Parking lot

Supermarket

Company Introduction

At Nanjing ARK Tec limited we deliver the most safest, innovative and smartest electric vehicle components, including all kinds of charging stations on the market.All of our products are with CE approval. The industry pioneers at ARK Tech build of real world EV charging expertise into every product we deliver. And our products sell quite well mainly in Europe and USA.We would like to show our honesty, top good quality, competitive prices and superior efficiency to start business with all of you. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction. "THANK YOU" to all of our long-time customers and "WELCOME" to our new customers. For more, please contact us freely.

FAQ

Q: Do your charger support the OCPP function?

Yes, our charger support the OCPP 1.6, it can be connected to Internet via Ethernet, 3G/4G.

Q: How about the quality and warranty about the charger?

All of our chargers are CE certificated. We supply 24 months warranty for the charger, what'more, we supply whole life techinical support.

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
