    22KW IEC 62196 Type 2 Connector 3 Phase AC EV Charger

    Ask Lasest Price
    Brand Name : ARK or OEM
    Model Number : AKEV22
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units per month
    Delivery Time : 25-45days
    • Product Details
    • Company Profile

    22KW IEC 62196 Type 2 Connector 3 Phase AC EV Charger

    ARK AC EV Charging Station About 22kw 32A And 400V With IEC 62196 Type-2 Connector

    Product Introduction

    AC EV charging stations with 22kW Type-2 connectors and OCPP 1.6 capabilities provide a modern design for commercial and public charging. Embedded RFID, Ethernet, and LTE capabilities make it ideal for mall and corporate charging applications. Compatible with OCPP1.6J protocol, it can be connected and operated with the global EV charging management platform.


    Product Parameters

    Technical specificationsAKEV22
    System
    Housing materialMetal enclosure
    Dimension (H x W x D)300*450*160mm, 1200*450*160mm (pedestal mount)
    Installation methodWall mount, pedestal mount (optional)
    Cable routingBottom inlet wiring
    WeightN.W.: 11kg
    Charging standardIEC 61851-22
    Charging outletType-2 socket or connector
    Outlet number1
    Input
    Input voltage230Vac +/-10% 1-phase400Vac +/-10%, 3-phase
    Input frequency50Hz/60Hz
    Output
    Max output power7kW22kW
    Measuring accuracyLevel 0.5
    Output voltage range230Vac +/-10% 1-phase400Vac +/-10%, 3-phase
    Output current range32A
    RCCBType-B, sensitivity: 30mA
    General
    Charging typeMode 3
    User InterfaceRFID, LCD Display
    AC connector typeIEC 62196 Type-2
    CommunicationPWM, Ethernet, LTE, OCPP 1.6J
    Application placeIndoor/Outdoor
    Working temperature-30 °C – +50 °C
    Working humidity5% – 95% non-condensation
    Altitude<2000m
    Protection gradeIP55
    CoolingNatural cooling
    Safety standardCompliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001
    Security designOver/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection

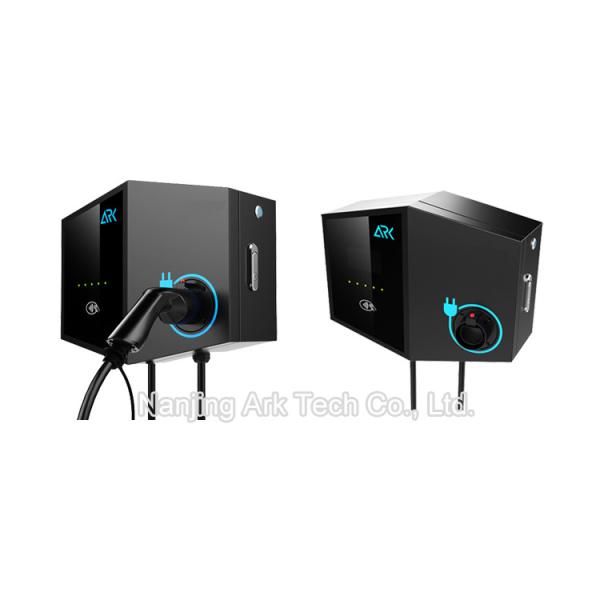

    22KW IEC 62196 Type 2 Connector 3 Phase AC EV Charger22KW IEC 62196 Type 2 Connector 3 Phase AC EV Charger



    Features
    4.3-inch display, unique user interface.
    LED status display.
    OCPP1.6 integration.
    Ethernet and LTE networks
    Wall mounting and base mounting are optional
    Socket and cable socket are optional
    OEM and brand services


    Application
    Shopping mall
    Company charging
    Parking lot
    Supermarket


    Company Introduction
    At Ark Technology, we hope to establish a one-stop turn-key electric vehicle AC/DC charger solution to make us your first choice for electric vehicle AC/DC charger project. Ark technology team has a great vision, to provide you with stable and reliable DC charging solutions and services. With rich experience and knowledge of electrical and digital power supply, we will provide you with the most professional and practical project implementation guidance.


    FAQ

    1. Why choose us as your preferred EV Charger supplier?

    I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

    II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

    III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

    IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.


    2. Is there any experience in implementing overseas charging station projects?

    Yes, actually we are the first to implement the overseas charging project. Until now, we cooperate with British power company, electric car chargers integrated pv system, and we install many electric vehicle charging operators dc charging machine along the highway from Los Angeles to San Francisco, and general motors manufacturer provide dc fast charging their bolt electric vehicle fleet, and some fees.


    3. What are the advantages of your products?

    I.Design and manufacture of carrier-grade products.

    II. Support CCS-1/2, CHADEMO, GB/T and other charging standards, to provide you with all kinds of standard EV DC chargers you want.

    III. Quality first, wider input/output voltage range, lower voltage output range, better temperature adaptation, higher protection level, longer technical predictability and the most advanced modular design.

    IV. fast customer response, professional technical support, to provide more solutions.

    4. Can you explain the differences of global DC fast charging standards?

    Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.

    CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.

    CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.

    CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.

    GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.

    Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.


    5. Does the higher the charging station output power mean the faster the charging speed?

    No, it isn't. Due to the limited power of the automobile battery at the present stage, when the output power of the DC charger reaches a certain limit, the greater the power does not bring the faster charging speed.

    However, the significance of the high-power DC charger is that it can simultaneously support dual connector and output high-power EV charging both at the same time. In the future, when the EV battery has been improved to support higher power charging, there is no need to invest in the charging station to upgrade again.
