    Three Phase OCPP 1.6 Electric Vehicle Charging Station IEC 62196

    Ask Lasest Price
    Brand Name : ARK or OEM
    Model Number : AEEV22
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 units per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

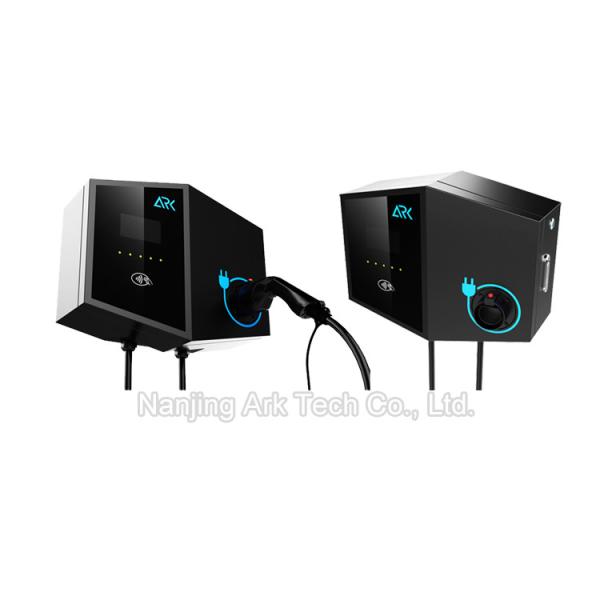

    Three Phase OCPP 1.6 Electric Vehicle Charging Station IEC 62196

    CE Approved 22KW Electric Vehicle Charger Station Car Charging Station For EV

    Three Phase 32Amp 22KW EV Charging Station Type 2 EV Plug Car Charger Wallbox


    Product Introduction

    The Ark AC EV charging station with 22kW Type-2 connector and OCPP 1.6 function adopts a modern design, in line with the aesthetics of European and American customers, with RFID, Ethernet and LTE functions, and is suitable for charging applications in large shopping malls and companies. It supports the OCPP1.6J protocol, which allows it to be connected and run with the global EV charging management platform.


    Product Parameters

    Technical specificationsAKEV22
    System
    Housing materialMetal enclosure
    Dimension (H x W x D)300*450*160mm, 1200*450*160mm (pedestal mount)
    Installation methodWall mount, pedestal mount (optional)
    Cable routingBottom inlet wiring
    WeightN.W.: 11kg
    Charging standardIEC 61851-22
    Charging outletType-2 socket or connector
    Outlet number1
    Input
    Input voltage230Vac +/-10% 1-phase400Vac +/-10%, 3-phase
    Input frequency50Hz/60Hz
    Output
    Max output power7kW22kW
    Measuring accuracyLevel 0.5
    Output voltage range230Vac +/-10% 1-phase400Vac +/-10%, 3-phase
    Output current range32A
    RCCBType-B, sensitivity: 30mA
    General
    Charging typeMode 3
    User InterfaceRFID, LCD Display
    AC connector typeIEC 62196 Type-2
    CommunicationPWM, Ethernet, LTE, OCPP 1.6J
    Application placeIndoor/Outdoor
    Working temperature-30 °C – +50 °C
    Working humidity5% – 95% non-condensation
    Altitude<2000m
    Protection gradeIP55
    CoolingNatural cooling
    Safety standardCompliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001
    Security designOver/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection

    Three Phase OCPP 1.6 Electric Vehicle Charging Station IEC 62196Three Phase OCPP 1.6 Electric Vehicle Charging Station IEC 62196



    Features

    The socket that supports the connector and the socket to accommodate different customer requirements.

    Socket in the front end ensures that customers can easily even wall-mounted charging.


    Self-reset function of leakage protection
    The built-in charger eliminates the operator goes to the site for maintenance.

    Promote the operation efficiency is high, and the unnecessary labor waste is reduced.




    Application
    Residential
    Shopping mall
    Company charging


    Company Introduction
    Since our team was established in 2016, we have been working on the issue of convenient charging. We hope to provide electric vehicle owners around the world with the best performance charging solution and provide convenient guarantee for electric vehicle driving.
    With our extensive experience in electric vehicle charging solutions, we can provide global standard AC and DC EV charging solutions and cloud management platforms. We have the ability to provide reliable and compatible EV charging equipment solutions and management systems for global customers, so that electric vehicles can easily use charging equipment.
    In order to provide a convenient guarantee for electric car travel, we will always be on the road!


    FAQ

    1. Why choose us as your preferred EV Charger supplier?

    I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

    II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

    III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

    IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.


    2. What are the advantages of your products?

    I.The design and production of telecom-level products.

    II. Support multiple charging standards, including CCS-1 / 2, CHAdeMO and GB/T, which means we can provide you with all the standard EV DC chargers you need.

    III. quality first, wider input and output voltage range, lower voltage output range, better temperature adaptability, higher protection level, longer technical outlook, and the most advanced module design.

    IV. Fast customer response, professional technical support and more solutions came into being.


    3. Can you explain the differences of global DC fast charging standards?

    Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.

    CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.

    CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.

    CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.

    GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.

    Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.


    4. Does the higher the charging station output power mean the faster the charging speed?

    No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.

    However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.


    5. If we purchase your EV DC charger, how to get your after-sales support?

    Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work. When encountering an urgent situation, we will also send professional technicians to provide on-site support.
