    Public OCPP 100A DC Electric Car Charging Stations

    Ask Lasest Price
    Brand Name : ARK or OEM
    Model Number : EF040CJ030
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200 units per month
    Delivery Time : 20-45 days
    • Product Details
    • Company Profile

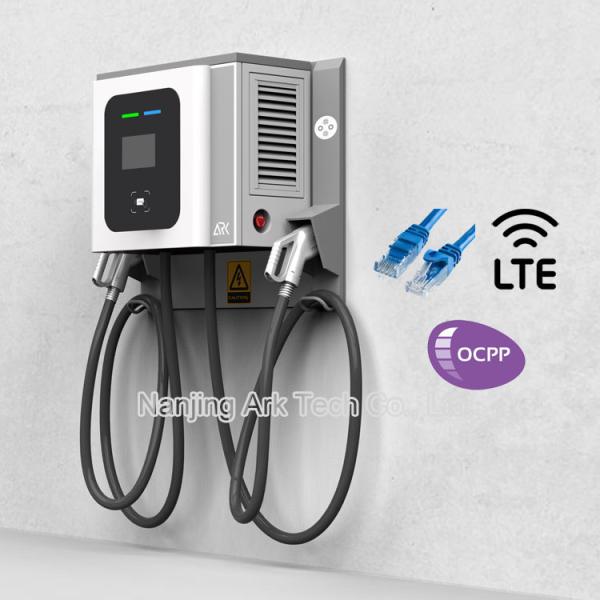

    Public OCPP 100A DC Electric Car Charging Stations

    Ark Public DC Electric Car Charging Station with 30KW CCS CHAdeMO DC Output and OCPP

    Product Introduction

    EF040 series DC charger is a kind of charging equipment specially developed by Nanjing ARK TECH Co., Ltd. for electric vehicles. The product has an integrated charging interface, HMI, communication and billing system, designed to achieve higher safety, stronger adaptability and more convenient operation. It is waterproof, dustproof and corrosion resistant. The appearance of the charger adopts a streamlined design, which makes users feel more comfortable. EF040 DC charger can be used in large parking lots, residential areas, shopping centers, hospitals, parks and gas stations, etc.



    Product Parameters
    Technical specificationsEF040CJ030
    System
    Housing materialMetal enclosure
    Dimension (H x W x D)600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)
    Installation methodWall mount, pedestal mount (optional)
    Cable routingBottom inlet, bottom outlet wiring
    WeightN.W.: 95kgs, 120kgs (pedestal mount)
    Charging standardIEC 61851, CHAdeMO
    Charging outletCHAdeMO JEVS G105, CCS Combo-2
    Outlet number2
    Input
    Input voltage400Vac +/-10%, 3-phase
    Input frequency50Hz/60Hz
    Power factor0.99
    Output
    Rated output powerCCS: 30kW, CHAdeMO: 30kW
    Measuring accuracyLevel 0.5
    Output voltage rangeCCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V
    Output current range0 - 100A
    Efficiency> 94% at rated output
    General
    Charging typeMode 4
    User InterfaceRFID, 7” touch screen, Emergency button
    Ethernet10/100 BaseTX (TCP-IP)
    CellularLTE modem, GPRS/3G/4G
    Communication
    CAN, PLC, OCPP 1.6 JSON
    Application placeIndoor/Outdoor
    Working temperature-30 °C – +55 °C
    Working humidity5% – 95% non-condensation
    Altitude< 2000m
    Protection gradeIP54
    CoolingFan cooling
    ComplianceEN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014

    Public OCPP 100A DC Electric Car Charging StationsPublic OCPP 100A DC Electric Car Charging Stations



    Features


    IP54 protection grade for extended lifetime against dust and wet.
    Multiple charging standards supported including CCS combo-1, CCS combo-2, CHAdeMO and GB/T.
    Integrated options with AC charging connector & cable or socket.
    Lightweight and compact design to reduce the cost of shipment and the difficulty of installation.
    This series of chargers can be operated stably in various application scenarios and environments, even if low or high temperatures.



    Application
    Retail and mall parking spaces
    Fleet charging stations
    Highway service areas
    Workplaces
    Residences, etc.


    Company Introduction
    With company's rich experience on EV charging field, our products have been successfully applied in most countries around the world. They are spread from cold North EU to hot Middle-East. Each customer enjoys the most professional and qualified products with best service.


    FAQ

    1. Why choose us as your preferred EV Charger supplier?

    I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

    II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

    III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

    IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.


    2. What are the advantages of your products?

    I. Telecom level product design and production.

    II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.

    III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.

    IV. Fast customer response, prefessional technical support and more solutions come out.


    3. Can you explain the differences of global DC fast charging standards?

    Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.

    CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.

    CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.

    CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.

    GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.

    Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.


    4. If we purchase your EV DC charger, how to get your after-sales support?

    Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work. When encountering an urgent situation, we will also send professional technicians to provide on-site support.
