750V EV DC Fast Charging Stations

Ask Lasest Price
Brand Name :	ARK or OEM
Model Number :	EF040CJ040
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	200 units per month
Delivery Time :	20-45 days

Add to Cart

Product Details
Company Profile

750V EV DC Fast Charging Stations

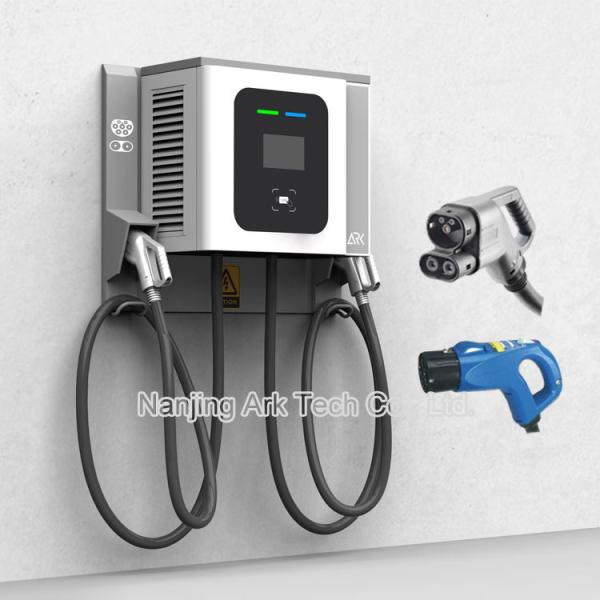

Ark 40KW 750V Fast Electric Car Charger Station with CCS CHAdeMO Dual Connectors

Product Introduction

EF040 comes up with modern design for commercial and public charging. Embedded with RFID, Ethernet and LTE features makes it best suitable for mall and company charging applications. Compliant with OCPP 1.6J protocol enables it to be connected and operated with global EV charging management platform.

Product Parameters

Technical specifications	EF040CJ040
System
Housing material	Metal enclosure
Dimension (H x W x D)	600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)
Installation method	Wall mount, pedestal mount (optional)
Cable routing	Bottom inlet, bottom outlet wiring
Weight	N.W.: 95kgs, 120kgs (pedestal mount)
Charging standard	IEC 61851, CHAdeMO
Charging outlet	CHAdeMO JEVS G105, CCS Combo-2
Outlet number	2
Input
Input voltage	400Vac +/-10%, 3-phase
Input frequency	50Hz/60Hz
Power factor	0.99
Output
Rated output power	CCS: 40kW, CHAdeMO: 40kW
Measuring accuracy	Level 0.5
Output voltage range	CCS: 150 – 750V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V
Output current range	0 - 100A
Efficiency	> 94% at rated output
General
Charging type	Mode 4
User Interface	RFID, 7” touch screen, Emergency button
Ethernet	10/100 BaseTX (TCP-IP)
Cellular	LTE modem, GPRS/3G/4G
Communication	CAN, PLC, OCPP 1.6 JSON
Application place	Indoor/Outdoor
Working temperature	-30 °C – +55 °C
Working humidity	5% – 95% non-condensation
Altitude	< 2000m
Protection grade	IP54
Cooling	Fan cooling
Compliance	EN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014

750V EV DC Fast Charging Stations

Features

Support outlet of connector and socket to meet different customer requirements. Socket outlet in the front ensures that customers can easily charging even if it is wall-mounted
The self-reset function of the leakage protection built in the charger eliminates the need for operators to go to the site for maintenance. Improve operation efficiency and reduce extra labor waste.

Application

Retail and mall parking spaces

Fleet charging stations

Highway service areas

Workplaces

Residences, etc.

Company Introduction

Since Ark start-up in 2016, we have always been committing to the issue of convenient charging and building charging infrastructure. And in 2017, we design and produce our first generation DC charger. Now we have our second generation DC charger and AC EV charger products certified, This will be more benefit to expanding the market.These years, Our performance continues to grow and our Annual turnover has lived up to 10M$! Our products are also get good reputation all over the world. This is the brief introduction of our company.

FAQ

Q: Do your charger support the OCPP function?

Yes, our charger support the OCPP 1.6, it can be connected to Internet via Ethernet, 3G/4G.

Q: How about the quality and warranty about the charger?

All of our chargers are CE certificated. We supply 12 months warranty for the charger, what'more, we supply whole life techinical support.

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
