    400V IEC 61851 IP54 DC Electric Car Charging Stations

    Ask Lasest Price
    Brand Name : ARK or OEM
    Model Number : EF040CJ030
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200 units per month
    Delivery Time : 20-45 days
    • Product Details
    • Company Profile

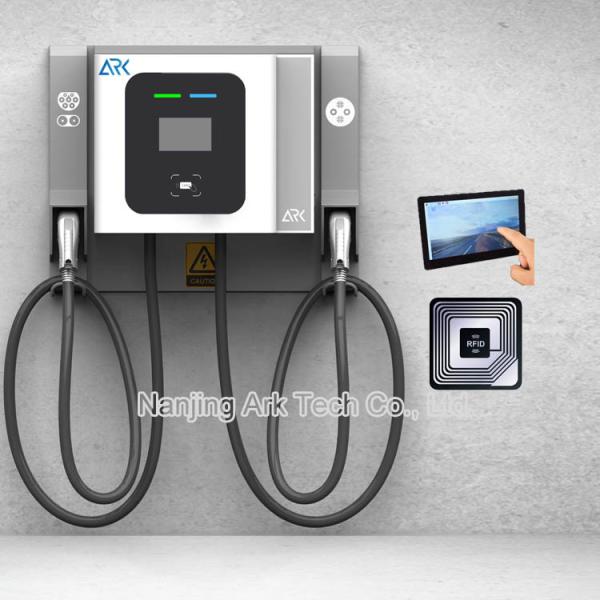

    400V IEC 61851 IP54 DC Electric Car Charging Stations

    Ark 40KW DC fast charging station for electric vehicles compliant with CCS and CHAdeMO


    Product Introduction

    EF040 is a Fast Charging station able to charge all current and next generation vehicles with CCS and CHAdeMO.

    EF040 charging station is a configurable single, dual outlet(default) 30 kW fast charging station, supporting the charging needs of each customer.

    Application: highway rest stops, petrol stations, EV dealers, busy urban areas, etc.



    Product Parameters
    Technical specificationsEF040CJ030
    System
    Housing materialMetal enclosure
    Dimension (H x W x D)600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)
    Installation methodWall mount, pedestal mount (optional)
    Cable routingBottom inlet, bottom outlet wiring
    WeightN.W.: 95kgs, 120kgs (pedestal mount)
    Charging standardIEC 61851, CHAdeMO
    Charging outletCHAdeMO JEVS G105, CCS Combo-2
    Outlet number2
    Input
    Input voltage400Vac +/-10%, 3-phase
    Input frequency50Hz/60Hz
    Power factor0.99
    Output
    Rated output powerCCS: 40kW, CHAdeMO: 40kW
    Measuring accuracyLevel 0.5
    Output voltage rangeCCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V
    Output current range0 - 100A
    Efficiency> 94% at rated output
    General
    Charging typeMode 4
    User InterfaceRFID, 7” touch screen, Emergency button
    Ethernet10/100 BaseTX (TCP-IP)
    CellularLTE modem, GPRS/3G/4G
    Communication
    CAN, PLC, OCPP 1.6 JSON
    Application placeIndoor/Outdoor
    Working temperature-30 °C – +55 °C
    Working humidity5% – 95% non-condensation
    Altitude< 2000m
    Protection gradeIP54
    CoolingFan cooling
    ComplianceEN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014

    400V IEC 61851 IP54 DC Electric Car Charging Stations400V IEC 61851 IP54 DC Electric Car Charging Stations



    Features


    40 kW DC fast charger supporting multiple standards as CCS, CHAdeMO

    Multiple outputs: DC power up to 30 kW

    Reliable, robust, modular hardware

    Simple, quick and easy installation

    Daylight readable touch screen display

    RFID authorization

    Low operational noise

    Customizable



    Application
    Retail and mall parking spaces
    Fleet charging stations
    Highway service areas
    Workplaces
    Residences, etc.


    Company Introduction
    Ark Tech is devoted to upgrade products, complete project solutions and after-sale service to ensure top ranks of our customer satisfaction in the market. We are committed to become the most professional EV charging equipment manufacturer in China and keep striving for it.


    FAQ


    Q: Do your charger support the OCPP function?

    Yes, our charger support the OCPP 1.6, it can be connected to Internet via Ethernet, 3G/4G.


    Q: How about the quality and warranty about the charger?

    All of our chargers are CE certificated. We supply 12 months warranty for the charger, what'more, we supply whole life techinical support.


    NOTE:

    1- OEM supported.

    2- Any requirement please contact us to talk about the details.

    3- We will reply you for your inquiry in 24 hours.

    4- If you have any questions about the charger, please contact us.

    5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
