    Type 2 IP55 IEC 61851 Commercial Electric Car Charger

    Ask Lasest Price
    Brand Name : ARK
    Model Number : AKEV22
    Certification : CE
    Price : 750$
    Payment Terms : T/T
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    Type 2 IP55 IEC 61851 Commercial Electric Car Charger

    Product Introduction

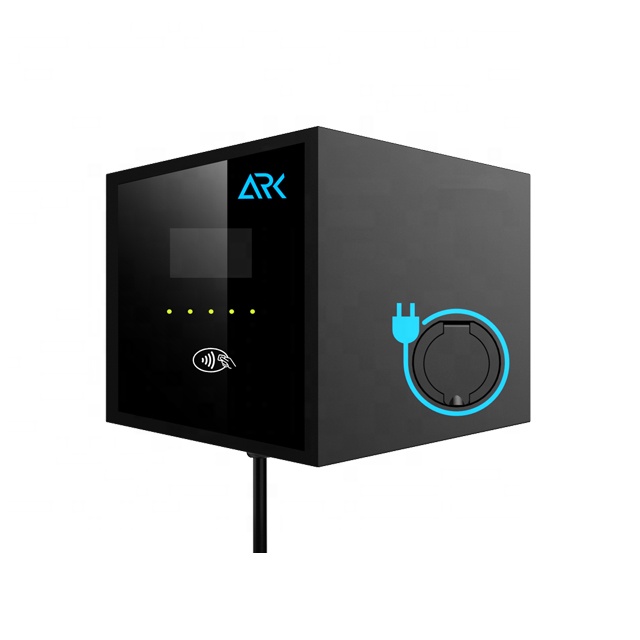

    AKEV22 3Phase 22KW AC EV charger with Type-2 outlet MID meter RFID and support OCPP V1.6J
    comes up with modern design for commercial and public charging. Embedded with RFID, Ethernet and LTE features makes it best suitable for mall and company charging applications. Compliant with OCPP 1.6J protocol enables it to be connected and operated with global EV charging management platform.
    Product Parameters
    Specification
    Model
    AKEV22
    Structure
    Application scenes
    Commercial and public charging
    Housing material
    Metal
    Dimension
    450 x 160 x 300mm (LxWxH)
    Installation method
    Wall mount and pedestal mount (optional)
    Cable routing
    Bottom inlet, bottom outlet
    Weight
    11kg
    Cable length
    5m
    Cable outlets
    1
    Electrical specifications
    Input voltage
    230Vac +/-10% 1-phase / 400Vac +/-10%, 3-phase
    Input frequency
    50 - 60Hz
    Rated power
    22kW AC
    Output voltage
    230Vac +/-10% 1-phase / 400Vac +/-10%, 3-phase
    Output current
    32Aac
    Efficiency
    ≥ 95%
    Power factor
    ≥ 0.99
    Function design
    User interface
    Emergency button, LED indicator
    Charging standards
    IEC 61851-22
    Communication
    PWM
    Environment condition
    Application place
    Indoor/Outdoor
    Working temperature
    -20 ° C ~ +55 ° C
    Working humidity
    5% ~ 95% without condensation
    Altitude
    <2000m
    Protection grade
    IP55
    Cooling
    Natural cooling
    MTBF
    100,000 hours
    Safety standards
    Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001
    Security design
    Over/under voltage protection, overload protection, current leakage protection, grounding protection, over temp protection, lightening surge protection

    Product Details Show
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger

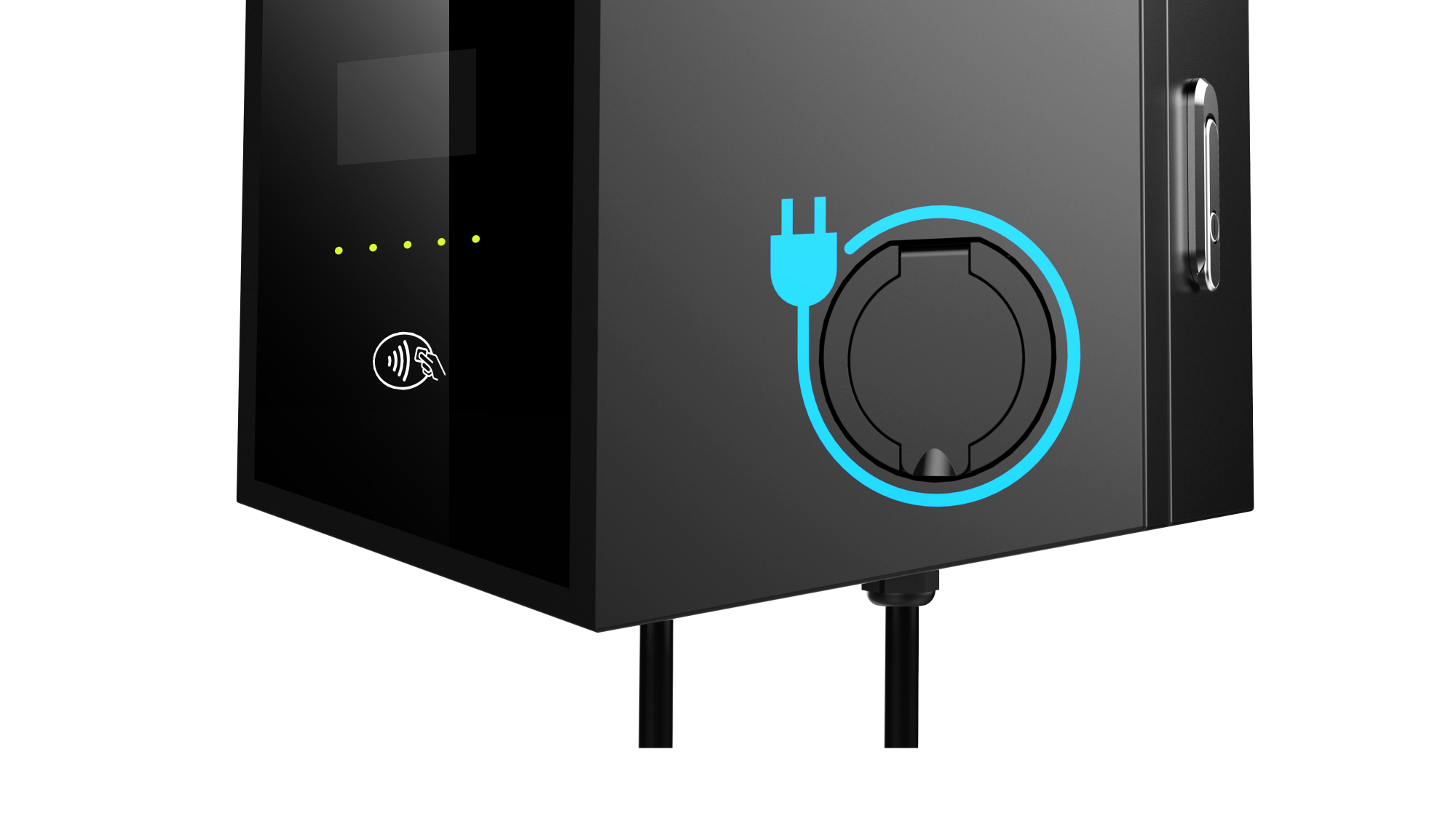

    Support socket and cable output
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    4.3-inch display and unique UI
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Wall and pedestal mount options
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Protrudent design, more fashionable
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    3-color dot indicator strip
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    LTE and OCPP connection

    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Company Details
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger

    Nanjing Ark Tech Co., Ltd.

    The Ark Tech team has a great vision to provide you with stable and reliable DC charging solutions and services. With extensive experience and knowledge of electrical and digital power supply, we provide you with the most professional and practical project implementation guidance.

    Nanjing Ark Tech Co., Ltd. was established in 2016. It is committed to the development of DC charger international business and client software, to make up for the lack of Chinese DC Charger manufacturers international market and customer service.

    Why Choose Us
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger

    1. Years Of Experience

    At Ark Tech, we have a dedicated team with years of experience in the EV Charger industry waiting to help you find the right charger.

    Type 2 IP55 IEC 61851 Commercial Electric Car Charger

    2. After Sales Support

    We have a professional team offering technical and implementation consultant service, as well as after sales support.

    Type 2 IP55 IEC 61851 Commercial Electric Car Charger

    3. Inquiry Service

    Please use our contact form to let us know your inquiry. Our charger experts can't wait to offer you the best service.

    4. Cases We Implemented Till Now

    An ambitious team that cares about revolutionizing a clean world through key tech and engineering innovations.

    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Case #1
    Provide 30kW DC Charging Service to Commercials In Hamburg Germany
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Case #2
    Set Up 60kW EV Charger Pilot Project in Bucharest Romania
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger

    Case #3

    Integrate DC Charger with PV System in UK

    Type 2 IP55 IEC 61851 Commercial Electric Car Charger

    Case #4

    Cooperate with Charging Operator in US

    Type 2 IP55 IEC 61851 Commercial Electric Car Charger

    Case #5

    Provide Charging Service to Car Dealers in Germany

    Type 2 IP55 IEC 61851 Commercial Electric Car Charger

    Case #6

    Set Up AC Charging Network at Parking Lots in Hong Kong

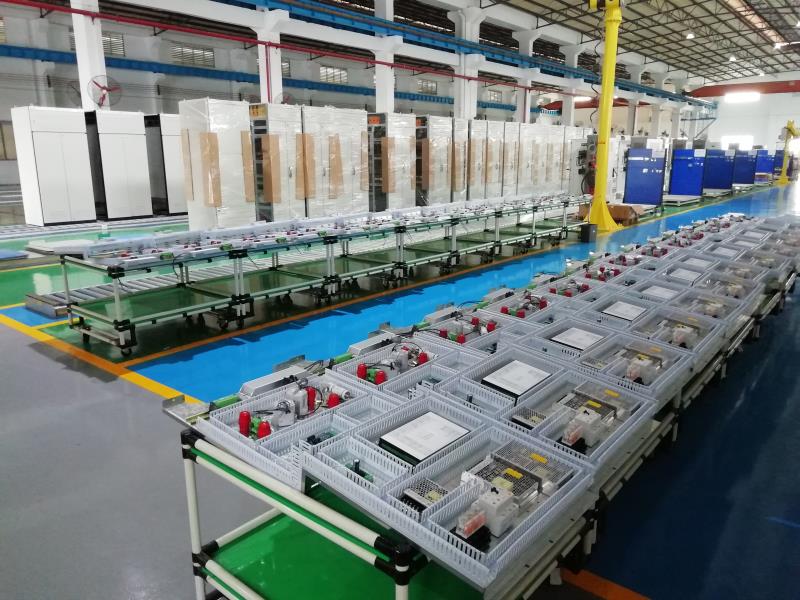

    Product Processing
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Raw material
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Material inspection
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Sheet metal assembly
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Electronics assembly
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    General assembly
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Ex-work inspection
    Packing & Delivery & Payment
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger
    Type 2 IP55 IEC 61851 Commercial Electric Car Charger

    FAQ

    1. Why choose us as your preferred EV Charger supplier?

    I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

    II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

    III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

    IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.

    2. Is there any experience in implementing overseas charging station projects?

    Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.

    3. What are the advantages of your products?

    I. Telecom level product design and production.

    II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.

    III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.

    IV. Fast customer response, prefessional technical support and more solutions come out.

    4. Can you explain the differences of global DC fast charging standards?

    Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.

    CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.

    CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.

    CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.

    GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.

    Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.

    5. Does the higher the charging station output power mean the faster the charging speed?

    No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.

    However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.

    6. If we purchase your EV DC charger, how to get your after-sales support?

    Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work. When encountering an urgent situation, we will also send professional technicians to provide on-site support.
