120KW 32A Commercial Electric Vehicle Charging Stations 150-750V

Ask Lasest Price
Brand Name :	ARK
Model Number :	UF160K750CJ-AC22
Certification :	CE
Price :	15000$
Payment Terms :	T/T
Delivery Time :	12-15 weeks

Add to Cart

Product Details
Company Profile

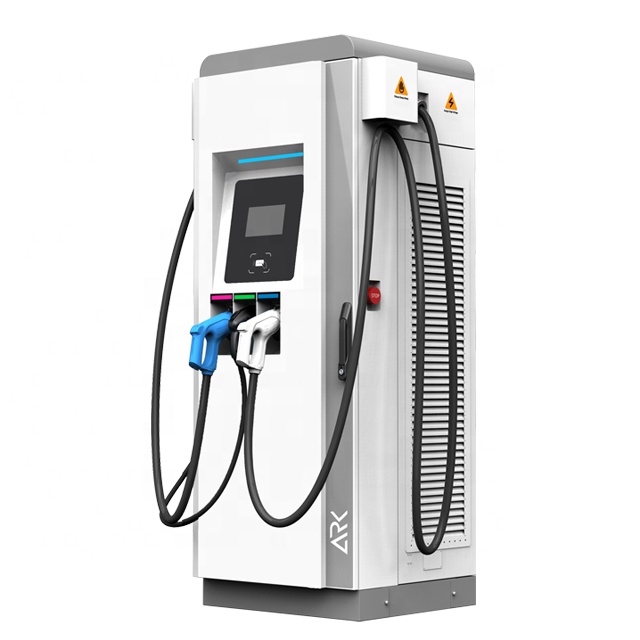

120KW 32A Commercial Electric Vehicle Charging Stations 150-750V

Product Introduction

ARK ev fast charger manufacturers supplies new adjustable current ev charger station commercial use with ocpp ccs and chademo

ARK 120kW OUTPUT 0-550V IP65 CCS and CHAdeMO charging station for electric car is the most advanced Electric Vehicle Charging Station currently available. Its modular design construction allows for free configuration of power modules and electrical components - increase the output power from 45kW to 90kW or even higher, application of a Ethernet/WiFi/3g/4g communication or RFID card reader.
 This series chargers can be operated stably in various application scenarios and envrionments, even if low or high temperatures.

Product Parameters

Specification	Model	EF160CJ082 / EF160CJ142
Structure	Application scenes	Parking lot/Public charging station
	Housing material	Metal case
	Dimension	8307901900mm (LWH)
	Installation method	Ground mount
	Cable routing	Bottom inlet, bottom outlet
	Weight	355kg
	Cable length	5m
	Cable outlets	3
Electrical specifications	Input voltage	400Vac +/-10%, 3-phase
	Input frequency	50 - 60Hz
	Rated power	120kW
	Output voltage	150 – 750V DC constant output @ above 300V, 400V AC
	Output current	0 - 200A DC, 32A AC / 0 - 400A DC, 32A AC
	Efficiency	≥ 94%
	Power factor	≥ 0.99
Function design	User interface	RFID, 7” touch screen, Emergency button
	Charging standards	CCS combo-1/2, CHAdeMO & AC IEC 61851
	Communication	CAN, PLC, PWM, OCPP 1.6 JSON
Environment condition	Application place	Indoor/Outdoor
	Working temperature	-20 ° C ~ +55 ° C
	Working humidity	5% ~ 95% without condensation
	Altitude	<2000m
	Protection grade	IP54
	Cooling	Forced-air
	MTBF	100,000 hours
	Safety standards	IEC 61851-1, IEC 61851-22, IEC 61851-23, IEC 61851-24, DIN 70121, IEC 15118-3
	Security design	Over/under voltage protection, overload protection, current leakage protection, grounding protection, over temp protection, lightening surge protection

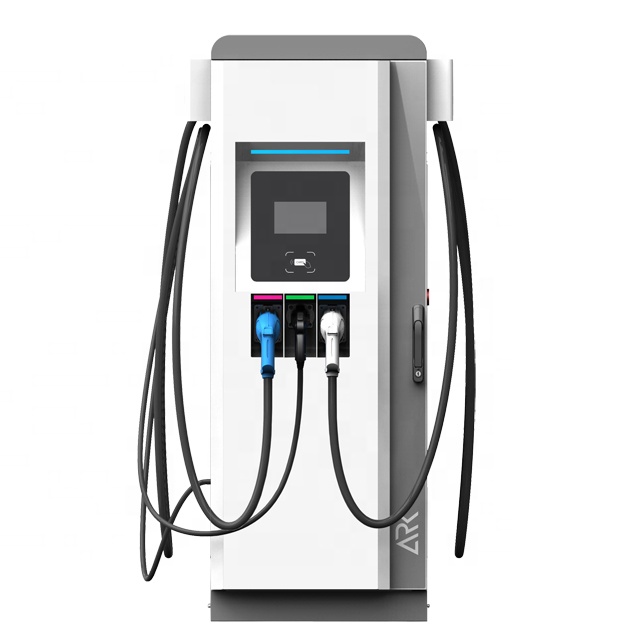

Product Details Show

120KW 32A Commercial Electric Vehicle Charging Stations 150-750V

Company Details

Product Packing

Product Tags:

IP54 ark 32A Commercial Electric Vehicle Charging Stations

IP54 ark 120KW Commercial Electric Vehicle Charging Stations

IP54 ark 750V ccs dc charger

120KW 32A Commercial Electric Vehicle Charging Stations 150-750V
