    40KW OCPP CCS Chademo RFID 132A Wall Box EV Charger

    Ask Lasest Price
    Brand Name : ARK
    Model Number : UF40K500C-W
    Certification : CE
    Price : 8500$
    Payment Terms : T/T
    Delivery Time : 11-14 weeks
    • Product Details
    • Company Profile

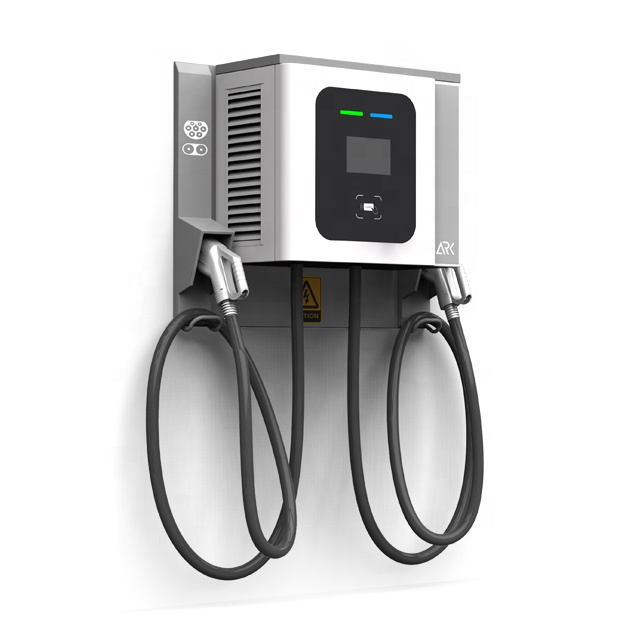

    40KW OCPP CCS Chademo RFID 132A Wall Box EV Charger

    Product Introduction
    New Design 40kw EV Commercial DC Charger With Intelligent Network OCPP With CCS/CHADEMO Outlets And RFID

    ARK 380V 400V 480V OUTPUT 0-550V 30kW CHAdeMO wall mounted EV DC Fast charger for i3 Fast Charging is the most advanced Electric Vehicle Charging Station currently available. Its modular design construction allows for free configuration of power modules and electrical components, application of a Ethernet/WiFi/3g/4g communication or RFID card reader.
    This series chargers can be operated stably in various application scenarios and envrionments, even if low or high temperatures.

    Product Parameters
    Specification
    Model
    EF040CJ
    Structure
    Application scenes
    Parking lot/Public charging station
    Housing material
    Metal case
    Dimension
    600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)
    Installation method
    Wall-mount, Pedestal-mount(optional)
    Cable routing
    Bottom inlet, bottom outlet wiring
    Weight
    95kgs, 120kgs (pedestal mount)
    Cable length
    4m
    Cable outlets
    2, single charging
    Electrical specifications
    Input voltage
    400Vac +/-10%, 3-phase
    Input frequency
    50Hz/60Hz
    Rated power
    40kW
    Output voltage
    150 – 750V DC, constant output @ above 300V
    Output current
    0 - 66A / 0 - 132A
    Efficiency
    ≥ 94%
    Power factor
    ≥ 0.99
    Function design
    User interface
    RFID, 7” touch screen, Emergency button
    Charging standards
    IEC 61851, CHAdeMO
    Communication
    CAN, PLC, OCPP 1.6 JSON
    Environment condition
    Application place
    Indoor/Outdoor
    Working temperature
    -20 ° C ~ +55 ° C
    Working humidity
    5% ~ 95% without condensation
    Altitude
    <2000m
    Protection grade
    IP54
    Cooling
    Forced-air
    MTBF
    100,000 hours
    Safety standards
    IEC 61851-1, IEC 61851-22, IEC 61851-23, IEC 61851-24, DIN 70121, IEC 15118-3
    Security design
    Over/under voltage protection, overload protection, current leakage protection, grounding protection, over temp protection, lightening surge protection
