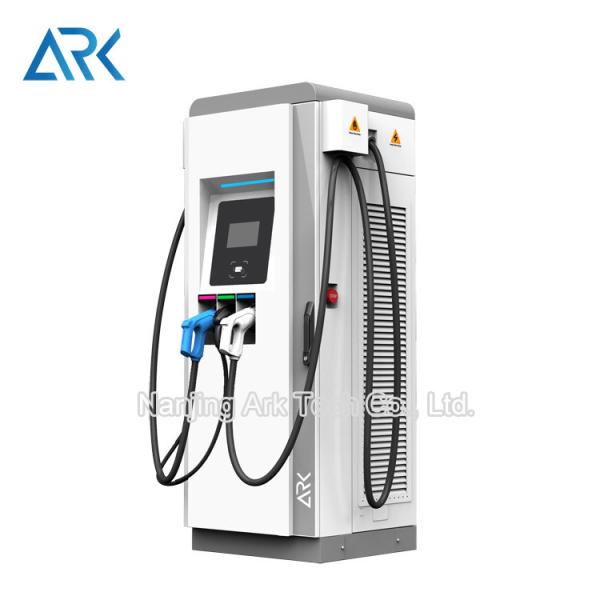

    Outdoor Ground Mount 120KW 1000V Chademo DC Fast Charging

    Ask Lasest Price
    Brand Name : ARK or OEM
    Model Number : EF160CJ142
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Outdoor Ground Mount 120KW 1000V Chademo DC Fast Charging

    Ark CE Certified 120KW 1000V DC EV Fast Charging Station with CCS CHAdeMO and AC Type - 2


    Product Introduction


    ARK EF160 Fast Chargers provides a rapid battery charge and supports three EVs simultaneous charging with multiple power output options.
    It is a flexible and open charging station able to charge in a standalone mode or integrated in any network with any central system.



    Product Parameters


    System
    Housing materialMetal enclosure
    Dimension (H x W x D)1900 x 700 x 700mm
    Installation methodGround mount
    Cable routingBottom inlet, top outlet wiring
    Weight355kgs
    Charging standardCCS combo-1/2, CHAdeMO & AC IEC 61851
    Charging outletCHAdeMO JEVS G105, CCS Combo-2, IEC 62196 Type-2
    Outlet number3
    Input
    Input voltage400Vac +/-10%, 3-phase
    Input frequency50Hz/60Hz
    Power factor0.99
    Output
    Rated output powerCCS: 60kW, CHAdeMO: 60kW, AC: 22kWCCS: 120kW, CHAdeMO: 60kW, AC:22kW
    Measuring accuracyLevel 0.5
    Output voltage range150 – 750V DC constant output @ above 300V, 400V AC
    Output current range0 - 200A DC, 32A AC0 - 400A DC, 32A AC
    Efficiency> 94% at rated output
    General
    Charging typeMode 4
    User InterfaceRFID, 7” touch screen, Emergency button
    Ethernet10/100 BaseTX (TCP-IP)
    CellularLTE modem, GPRS/3G/4G
    CommunicationCAN, PLC, PWM, OCPP 1.6 JSON
    Application placeIndoor/Outdoor
    Working temperature-20 °C – +70 °C
    Working humidity5% – 95% non-condensation
    Altitude< 2000m
    Protection gradeIP54
    CoolingFan cooling
    Security designOver/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection

    Outdoor Ground Mount 120KW 1000V Chademo DC Fast ChargingOutdoor Ground Mount 120KW 1000V Chademo DC Fast Charging



    Features


    0% to 80% of charge in less than 30 min
    CHAdeMO, CCS and AC Type-2 compliant
    DC and AC simultaneous charging

    High reliability
    High efficiency > 94%
    High power factor 0.99



    Company Details


    The foresight of the Ark Technology team can provide you with stable and reliable DC charging solutions and services. With rich experience and knowledge in electrical and digital power supply, we provide you with the most professional and practical project implementation guide. Our products have passed various application scenarios and laboratory standard tests. You can purchase our charging station products without any worries and get our professional service support.




    FAQ

    1. Why choose us as your preferred EV Charger supplier?

    I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

    II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

    III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

    IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.


    2. Is there any experience in implementing overseas charging station projects?

    Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.


    3. What are the advantages of your products?

    I. Telecom level product design and production.

    II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.

    III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.

    IV. Fast customer response, prefessional technical support and more solutions come out.


    4. If we purchase your EV DC charger, how to get your after-sales support?

    Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work.

    When encountering an urgent situation, we will also send professional technicians to provide on-site support.


    5. Does the higher the charging station output power mean the faster the charging speed?

    No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.

    However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
