    Fan Cooling 120KW IEC 62196 EV DC Fast Charging Stations

    Ask Lasest Price
    Brand Name : ARK or OEM
    Model Number : EF160CJ142
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

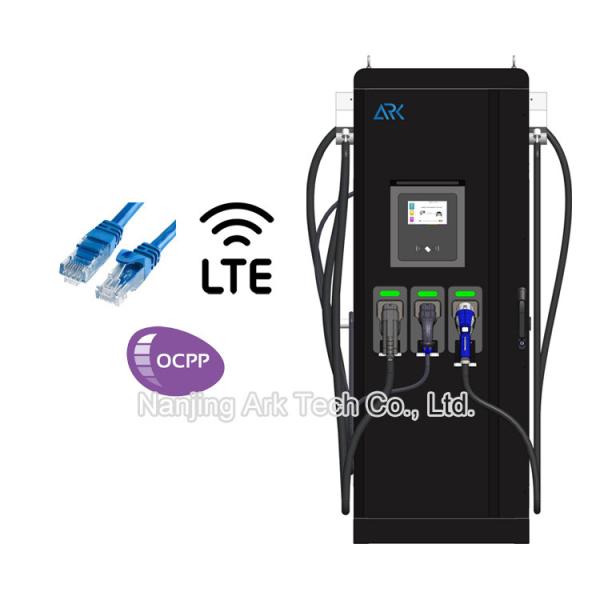

    Fan Cooling 120KW IEC 62196 EV DC Fast Charging Stations

    Manufacturer Supply 120KW Electric Car Charging Station With RFID And OCPP Function


    Product Introduction


    ARK EF160 Quick Charger provides fast battery charging and supports three electric vehicles charging at the same time with a variety of power output options.
    It is a flexible open charging station that can be charged independently or integrated with any central system on any network.



    Product Parameters


    System
    Housing materialMetal enclosure
    Dimension (H x W x D)1900 x 700 x 700mm
    Installation methodGround mount
    Cable routingBottom inlet, top outlet wiring
    Weight355kgs
    Charging standardCCS combo-1/2, CHAdeMO & AC IEC 61851
    Charging outletCHAdeMO JEVS G105, CCS Combo-2, IEC 62196 Type-2
    Outlet number3
    Input
    Input voltage400Vac +/-10%, 3-phase
    Input frequency50Hz/60Hz
    Power factor0.99
    Output
    Rated output powerCCS: 60kW, CHAdeMO: 60kW, AC: 22kWCCS: 120kW, CHAdeMO: 60kW, AC:22kW
    Measuring accuracyLevel 0.5
    Output voltage range150 – 750V DC constant output @ above 300V, 400V AC
    Output current range0 - 200A DC, 32A AC0 - 400A DC, 32A AC
    Efficiency> 94% at rated output
    General
    Charging typeMode 4
    User InterfaceRFID, 7” touch screen, Emergency button
    Ethernet10/100 BaseTX (TCP-IP)
    CellularLTE modem, GPRS/3G/4G
    CommunicationCAN, PLC, PWM, OCPP 1.6 JSON
    Application placeIndoor/Outdoor
    Working temperature-20 °C – +70 °C
    Working humidity5% – 95% non-condensation
    Altitude< 2000m
    Protection gradeIP54
    CoolingFan cooling
    Security designOver/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection

    Fan Cooling 120KW IEC 62196 EV DC Fast Charging StationsFan Cooling 120KW IEC 62196 EV DC Fast Charging Stations



    Features


    It charges between 0% and 80% in 30 minutes
    Compatible with CHADEMO, CCS and AC Type-2
    DC and AC are charged simultaneously

    High reliability
    High efficiency > 94%
    High power factor 0.99



    Company Details


    Ark technology team's foresight can provide you with stable and reliable DC charging solutions and services. With rich experience and knowledge in the electrical and digital power fields, we will provide you with the most professional and practical project implementation guide. Our products have been tested to a variety of application scenarios and laboratory standards. You can rest assured to buy our charging station products, and get our professional service support.





    FAQ

    1. Why choose us as your preferred EV Charger supplier?

    I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

    II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

    III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

    IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.


    2. Is there any experience in implementing overseas charging station projects?

    Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.


    3. What are the advantages of your products?

    I. Design and production of carrier-grade products.

    II. Support CCS-1/2, CHADEMO, GB/T and other charging standards, to provide you with all kinds of standard EV DC chargers you want.

    III.Quality first, wider input/output voltage range, lower voltage output range, better temperature adaptation, higher protection level, longer technical predictability and the most advanced modular design.

    IV. fast customer response, professional technical support, to provide more solutions.


    4. If we purchase your EV DC charger, how to get your after-sales support?

    In general, we will provide comprehensive after-sales technical training, including the provision of written training materials, training videos or invite customer technical personnel for face-to-face training, to help customers master parts replacement and basic maintenance work.

    In case of emergency, we will also send professional technicians to provide on-site support.


    5. Does the higher the charging station output power mean the faster the charging speed?

    No, it isn't. Due to the limited power of the automobile battery at the present stage, when the output power of the DC charger reaches a certain limit, the greater the power does not bring the faster charging speed.

    However, the significance of the high-power DC charger is that it can simultaneously support dual connector and output high-power EV charging both at the same time. In the future, when the EV battery has been improved to support higher power charging, there is no need to invest in the charging station to upgrade again.
